Setup your BlackBox Connector Profile

To connect your Deltek application to Concur Expense, we need to establish a profile under your Blackbox Connector account that securely passes your authentication credentials for both systems on demand. This will involve specifying how to connect to your Deltek application and Concur over their respective web services, and specifically what information to exchange between the two applications.

Enable the Connector

Log into www.concursolutions.com with the wsadmin account (or one with similar privileges) and go to App Center.

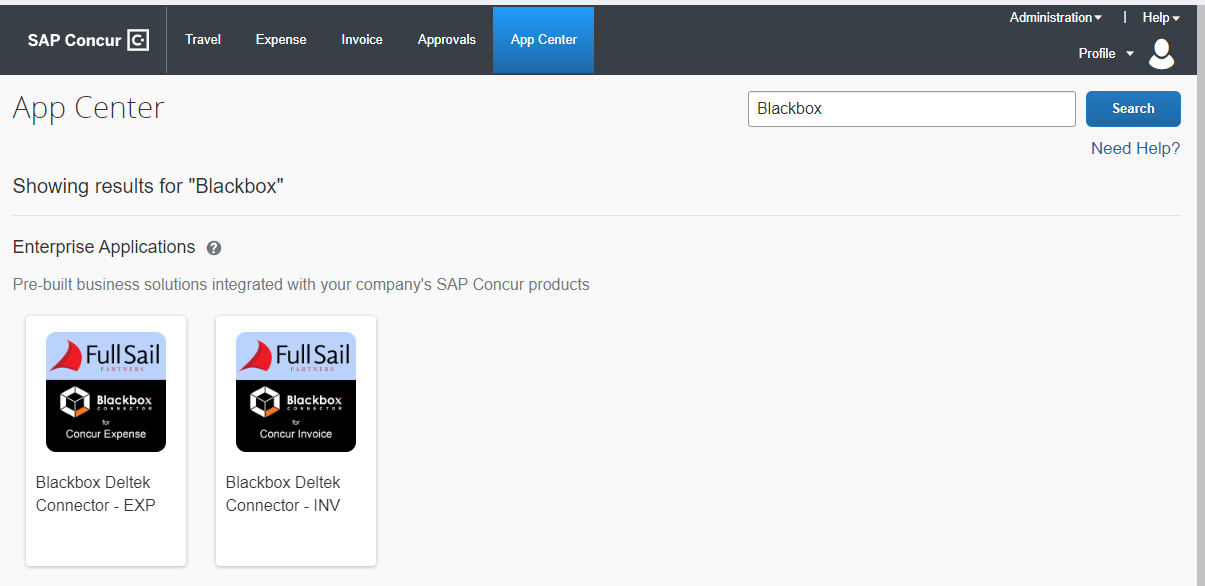

Search for "Blackbox" to find the Expense and Invoice Connector listings (note, if you have Expense and Invoice you will have two Blackbox Connector for Concur instances that will need to be enabled). Click into the listing for the Expense or Invoice application, whichever you are connecting.

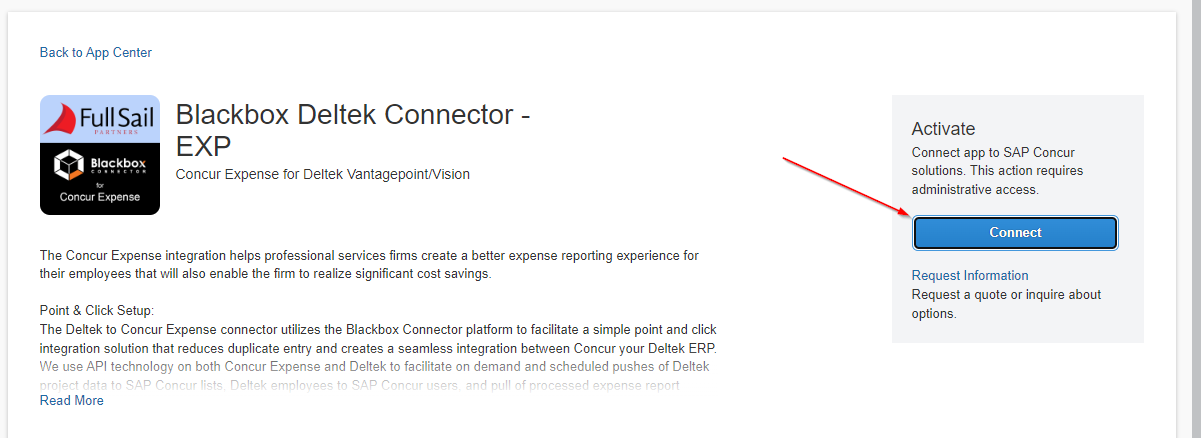

Click Connect

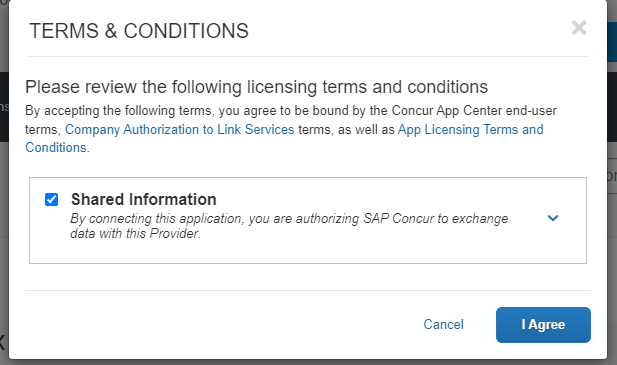

Check off all boxes required for the App and Click "I Agree"

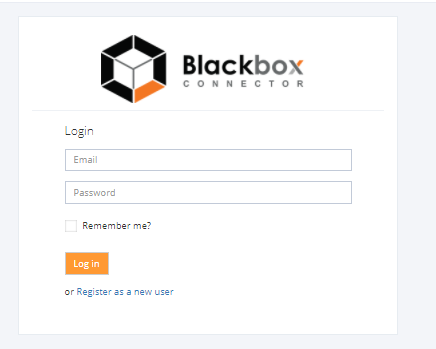

In the new window, log into the Blackbox connector application if prompted

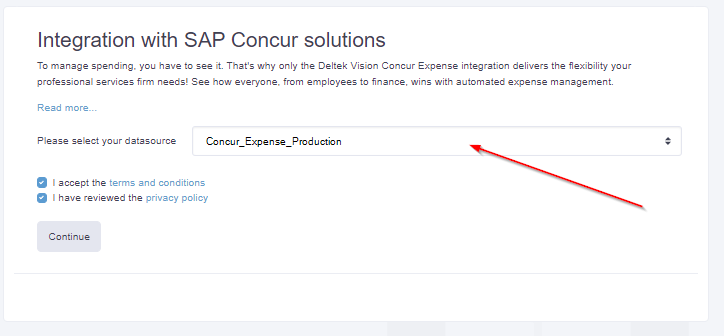

Select the Connector Instance you are working with (NOTE: If you use Expense and Invoice, you must choose the correct instance to avoid issues with data synchronization). Be sure to check off the boxes for terms and conditions and the privacy policy, then click Continue.

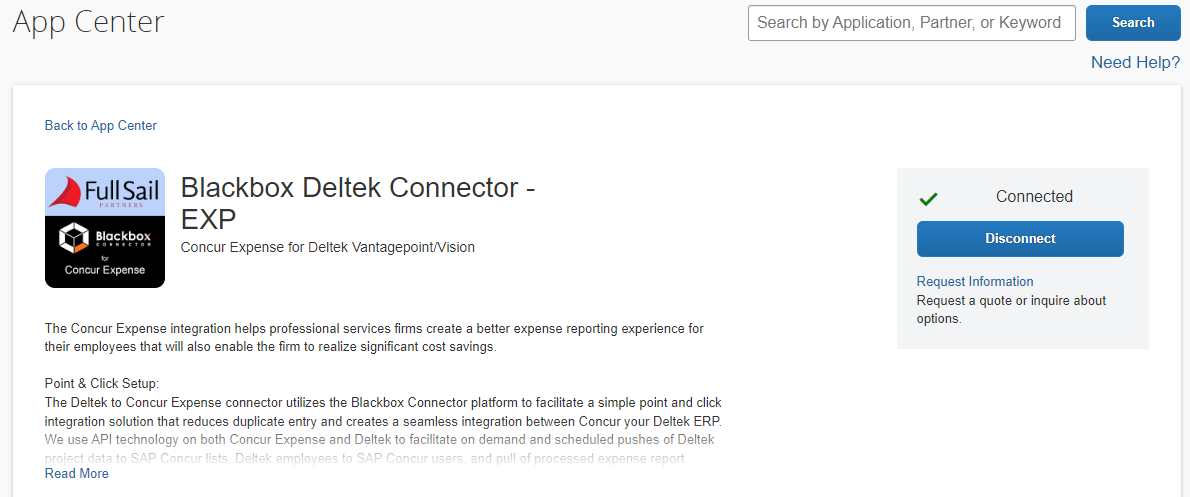

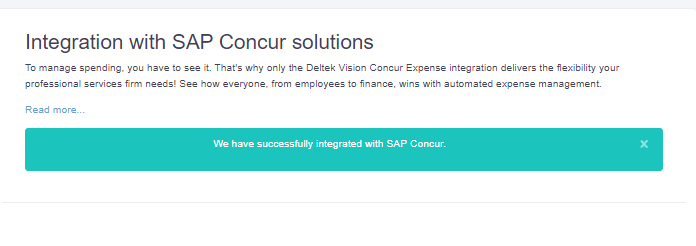

You should see a success response: and in Concur the App will show as "Connected"
Repeat this process for the other product you use (only if you use both Concur Invoice and Expense).

Create your Deltek Web Service Instance and Provide Authentication Details

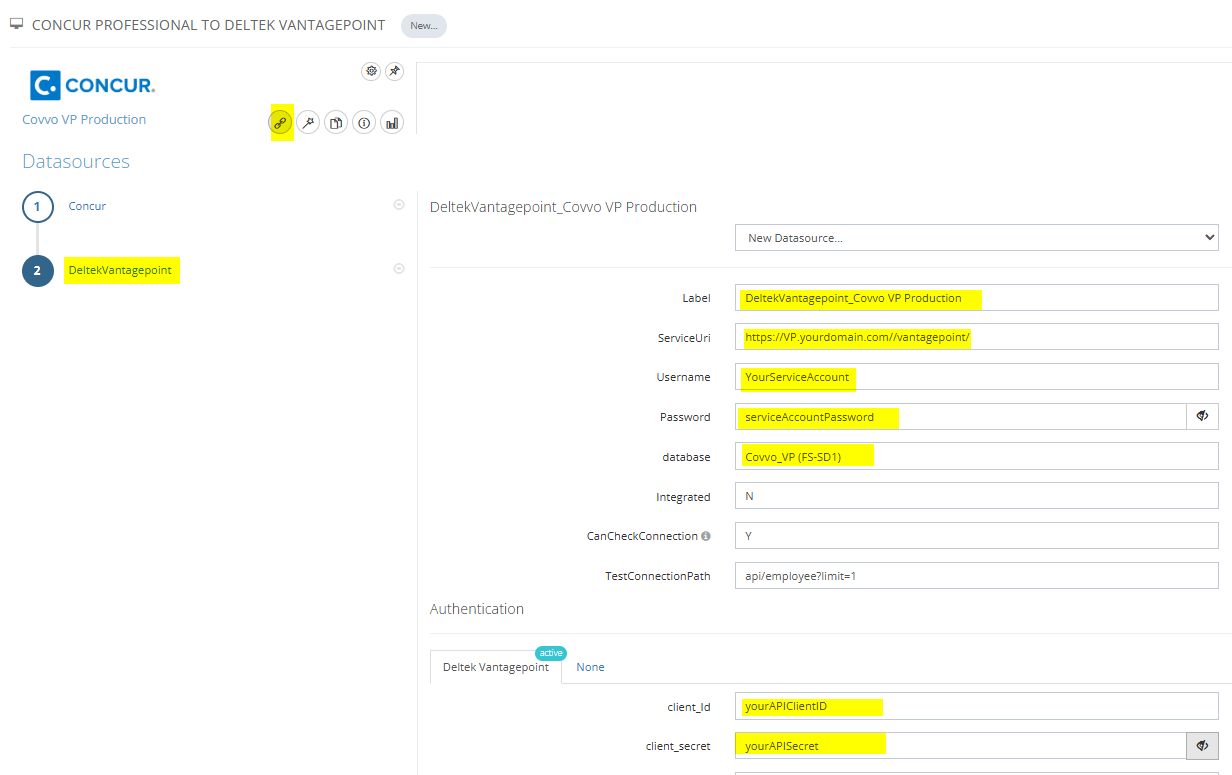

Click on to the Deltek Vantagepoint Authentication in Data Sources of your Instance:

Enter in the following to complete this step:

Service URI: This is Deltek Vantagepoint URL (the address you can use to access Vision from a computer) –
- https://vp.yourcompanyname.com/vantagepoint
Deltek Database Description: From the drop down of your Vision login screen or from your Weblink entry.
Username and Password: The Deltek Vision Username and Password with the access rights defined here.
Client ID and Secret:
- If you already have these from Vantagepoint, you can use an existing pair and enter them, otherwise follow these steps to create an API Authorization.

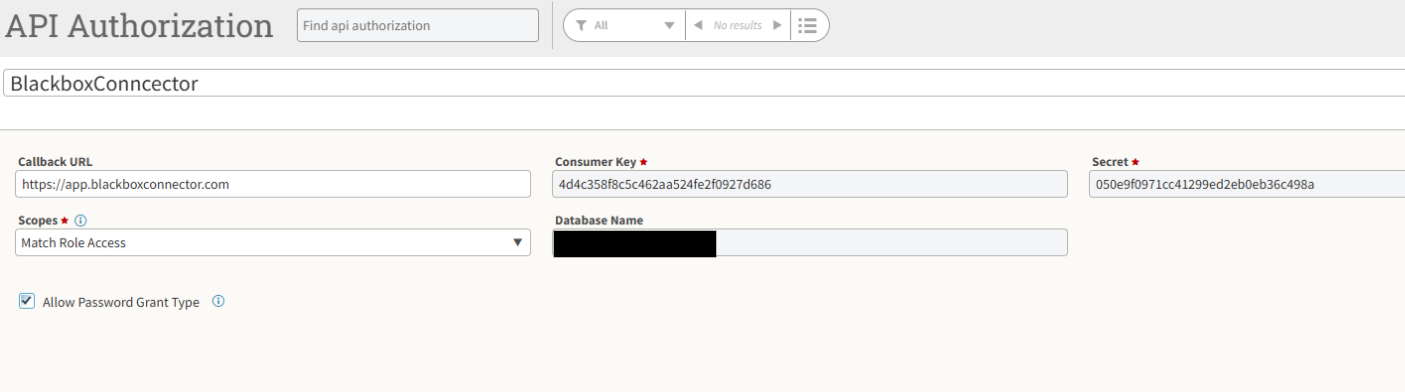

- In Vantagepoint Go to Utilities > Integrations > API Authorization
  Enter in this information:
  Name: Blackbox (or whatever you want)
  Callback URL: https://app.blackboxconnector.com
  Scopes: Match Role Access
  Check on Allow Password Grant Type
Back in Blackbox: Check Integrated security ONLY if you are using integration security.
- If you check this and select DOMAIN CREDENTIALS from the Web services Authentication menu on the right, and you’ll prompted Active Directory credentials – enter these and click Save ONLY if you use Integrated Authentication in your Deltek Vantagepoint installation
